型 號(hào) TYPE |
腳位 Pin |
BVDSS Min （V） |
ID (A) |
RDS(ON) |
VGS(th) （V） |

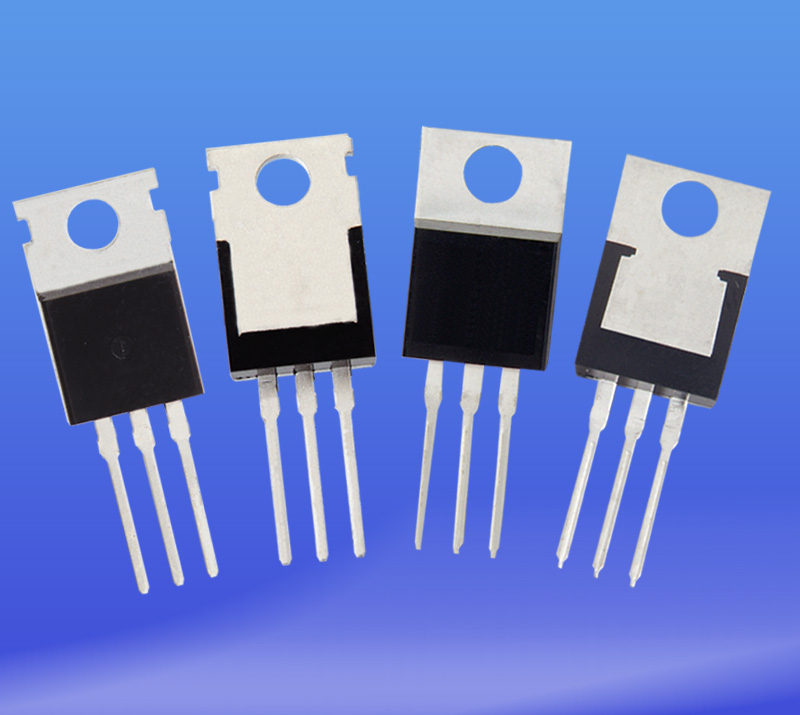

封裝形式 PACKAGE |
||
|
MAX |
VGS |
ID |
||||||
(Ω) |
（V） |
(A) |
||||||
|
IRF540 |
GDS |
100 |
28 |
0.077
|
10 |
17 |
2-4 |
TO-220 |
|
IRF630 |
GDS |
200 |
9 |
0.4 |
10 |
4.5 |
2-4 |
TO-220 |
|
IRF640 |
GDS |
200 |
18 |
0.18 |
10 |
9 |
2-4 |
TO-220 |
|
IRF730 |
GDS |
400 |
5.50 |
1 |
10 |
3 |
2-4 |
TO-220 |
|
IRF740 |
GDS |
400 |
10 |
0.55 |
10 |
5 |
2-4 |
TO-220 |
|
IRF830 |
GDS |
500 |
4.5 |
1.5 |
10 |
2.5 |
2-4 |
TO-220 |
|
IRF840 |
GDS |
500 |
8 |
0.85 |
10 |
4 |
2-4 |
TO-220 |
|
2N60 |
GDS |
600 |
2.0 |
5 |
10 |
1 |
2-4 |
T0-220 |
|
4N60 |
GDS |
600 |
4 |
2.5 |
10 |
2.2 |
2-4 |
TO-220 |
|
7N60 |
GDS |
600 |
7 |
1 |
10 |
3.7 |
2-4 |
TO-220 |
|
8N60 |
GDS |
600 |
7.5 |
1.2 |
10 |
3.75 |
2-4 |
TO-220 |
|
30N06 |
GDS |
60 |
30 |
0.04 |
10 |
15 |
2-4 |
TO-220 |
|
50N06 |
GDS |
60 |
50 |
0.02 |
10 |
25 |
2-4 |
TO-220 |
